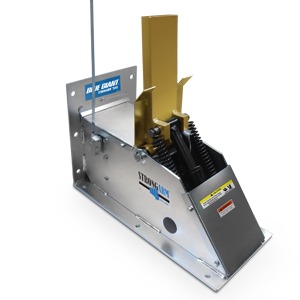

StrongArm™ TL85

The Blue Giant StrongArm™ TL85 hydraulic vehicle restraint keeps dock operations safe and secure during loading and unloading.

Trucks and trailers are held firmly in place by a high-visibility barrier-style restraint arm, and a restraining force of 32,000lbs (14,545kgs) prevents accidental separation from the loading dock during the cargo handling process.

The TL85 may be left engaged overnight to deter trailer theft.

NON-IMPACT OPERATION

• ICC bars are secured via passive engagement, creating less wear and tear on the restraint components and consequently lowering maintenance requirements
• Internal automatic pressure switch maintains the arm in the locked position while in operation
• Compatible with air-ride suspension systems
• VersaLock™ securing technology allows the restraint arm to lock at any angle between 45 and 90 degrees
• Perfect for applications that involve a variety of truck configurations, including those with bent or damaged ICC bars
• Services trucks with ICC bars from 12″ to 26″ (305mm to 660mm) above ground
• Horizontal restraining range is up to 12″ (305mm) beyond the face of the dock
• Should an obstacle prevent the restraint arm from properly parking, the arm will dislodge it

VERSATILE INSTALLATION

• The TL85 comes standard with a remote, wall-mounted powerpack, but is also available with a self-contained powerpack, to suit site conditions
• May be wall or ground-mounted

INTELLIGENT TOUCH CONTROLS

• The Blue Genius™ Gold Series II Touch Control Panel features include an LCD menu screen, function buttons and a flat surface keypad with unique touch sensors
• Interior and exterior LED lights keep drivers and warehouse personnel advised of safety conditions
• Audible alarm built into the control panel alerts the dock attendant to potentially unsafe conditions, such as broken or missing ICC bars
• Audible touch buttons and keypad provide instant sound feedback to user input
